ILT800 CureRight Radiometer

ILT800 Profiling Belt Radiometer

ILT800 CureRight Radiometer

Part Number: ILT800

ILT800 UV Radiometer Features

  • Stores up to 1,000 measurements
  • View saved measurements on meter's integrated display
  • Download saved measurements to your PC
  • Simple CureRightTM  PC interface to download, view and compare measurements
  • Measures mW/cm2 to 40 W/cm2
  • Effortless results, clear data, easily identifies problem
  • Graphical display of measurements (profiling) is standard
  • 3000 samples per second
  • Integration for up to 10 minutes
  • Measure pulsed and continuous sources
  • Mapping: face horizontally, vertically, up or down
  • Linear response- no range selection required
  • Made in USA
  • ISO17025 Accredited and NIST Traceable Calibration
  • Custom & OEM inquiries welcome


< Back to All Light Meters & Radiometers
< Back to All Light Measurement Systems

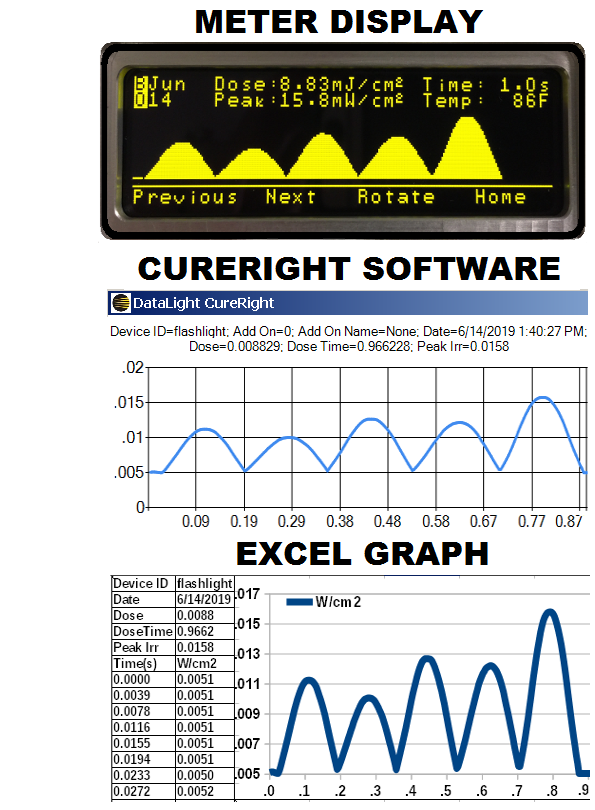

ILT800 Screen

ILT800 UV Radiometer: The One Meter That Does It All

The ILT800 CureRight is a feature-rich profiling UV curing radiometer that delivers unmatched flexibility and capability not found in any other system.  Its versatility allows the unit to measure lights used for UV curing and for numerous other applications such as sterilization / disinfection, lithography, and more.  The system has been designed with the varying needs of its users in mind, and can be configured and customized to your unique environment.


The ILT800 CureRight series measures and validates all types of UV curing methods and sources including conveyor, belt, oven, flood, area, spot, fiber optic, collimated beam, side cure, 180° curing, 3D printing, pulsed and traditional UV lamps, and UV/VIS LEDs &  light sources.


The ILT800 CureRight UV radiometer system outperforms the competitors with features such as profiling as a standard feature, and programmable settings such as measurement modes (auto/manual/live), minimum light level threshold, lamp-to-lamp measurement interval (delay).  The system also has a uniquely designed user interface that places the input sensor and optic, device controls, and the readout display all on the same side, allowing simultaneous measuring, monitoring, and analyzing of measurement data.


A Complete Process Monitoring and Validation Tool

The ILT800 UV radiometer allows users to monitor their curing processes over time by enabling them to store, download, and view both current and all previously saved readings on the device's integrated OLED display.  This on-board data storage and review capability allows users to quickly see changes that have occured over time.  It also enables users to easily identify potential problems in their systems such as dirty lamps and reflectors, lamp / reflector misalignment, declining lamp output, failed lamps, and power supply issues, to name a few.  Added benefits include the ability to download the results to a computer for more sophisticated analysis.  Using ILT's proprietary DataLight CureRight software interface, users can download and view their data, as well as create spreadsheets and reports using their own analysis tools.

To enhance the data storage and capabilities even further, ILT added an advanced sorting feature called Device ID, a feature not found in any other UV curing light meter.  Device ID allows users to program up to 20 unique system/light source name tags. Device ID allows users to then view and export all saved data for each curing station or light source into separate files, clearly identified with the Device ID.  It's like having the functionality of multiple meters in one device.


Select The UV Radiometer Model That Matches Your Photoinitiator

The ILT800 spectral filtration was designed to match the photoinitiators' response to UV light which is directly related to its absorption, and is very wavelength selective.  Most lamps emit broadband UV/VIS/IR, and the lamp's output may not change evenly over all wavelengths.  The ILT800 filters were designed to monitor changes in output in the areas that effect the absorption, and in turn, the effectiveness of the curing.  Whether you're using a low output fluorescent source for sterilization, high intensity mercury or xenon lamps for curing, or narrow-band LED's for photolithography, there is a version of the ILT800 optimized for your needs.


  • Filtration options covering UVC to UV-VIS
  • Filtration to ensure a process match
  • Measures only the light that effects the cure

The response curves for each filtration option are shown below.  Custom designs are also available.


ILT800 spectrum


View an introductory video on the ILT800 CureRight UV Radiometer below.



Spectrum/Filtration Options

ILT800-UVA 315 - 390 nm
ILT800-BAV 275 - 475 nm
ILT800-UV 250 - 400 nm
ILT800-CUV 215 - 350 nm
ILT800-UVF (UV LED) 360 - 400 nm Flat, (275 - 450 nm)
OEM/Custom Filtration Available Contact Us

Device Specifications*

Range: 4.5 decade (mW/cm2 to 40 W/cm2)
Readout: mW/cm2, mJ/cm2, W/cm2, J/cm2 & profile/graph, Date, Time, Temp.
Sensors: Linear, solid state GaAsp & SiC
Dimensions: 102 X 152 X 12.7 mm (L x W x H)
Display: 19 x 71 mm OLED
Power: Micro USB & rechargeable battery
Temp: 0 - 75 degrees C (internal case temp)
Input Optic:  Cosine correction diffuser
Memory: 400,000 data points

*Specifications are subject to change without notice
