ILT5000, SED624/K9 Bench-Top Research IR Thermopile System
![Bench-top research IR thermopile system](/sites/default/files/styles/large/public/2019-04/ilt5000_w_table2.png?itok=L7o09Qee)
ILT5000, SED624/K9
Bench-Top Research IR Thermopile System
- 10+ Decade Dynamic Range of Optical Analysis
- Pico-ammeter: 10fA to 1mA (calibrated from 100fA - 1mA)
- Wireless Communication, Built-in
- User controlled or Auto: Range, Zero/Dark, Sample Rate
- 4-20 mA Output
- 15 pin D Sub and SMA sensor/input ports
- “Set it & Forget It” Remote Data Logging
- Power: USB or Built-in Re-Chargeable Battery Pack
- Multi-System Simultaneous Continuous Monitoring
- Includes DataLight II Software and Labview Sample Code
- NIST-Traceable/ISO/IEC 17025:2017 Accredited Calibration
- Sample Rate Up to 100 Hz, Programmable
- Custom & OEM Inquiries Welcome
< Back to Radiometry Measurement Table

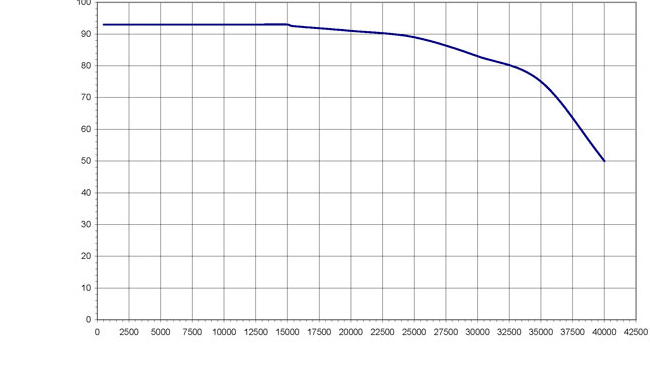

![SED624 Response Curve](/sites/default/files/sed624_0.jpg)
SED624/K9 4 mm2 thermopile detector with KBr window
Dynamic Range: 2e-5 to 1e-1 W/cm²
Measurement Range: 200-40,000 nm
Dimensions: 65 x 42 mm dia.
Ordering part#(s): ILT5000, SED624/K9
![HNK15 detector](/sites/default/files/inline-images/sedhnk15.jpg)
Filters and input optics are removable and may be ordered separately from the detector assembly to allow filter and input optic swapping.
Note: For simultaneous multi-sensor data logging, ILT also offers the ILT6000 Rack-Mount Radiometer System with the same specifications as the ILT5000 in a 2-10 unit, rack mountable housing.
![ILT6000](/sites/default/files/styles/large/public/ilt6000_0.jpg?itok=FGXQ_eal)
![ILT6000 Board](/sites/default/files/styles/medium/public/ilt-a6000-0184_web_0.jpg?itok=2uI0xb1o)
For the latest meter specifications, data sheet, installation guide, tech notes and software, visit the ILT5000 page here.
