ILT5000 Research Phototherapy UVA Measurement System

ILT5000 Research Radiometer

ILT5000, SED033/UVA/W

Part Number: ILT5000, SED033/UVA/W US
$3,409.00

Research phototherapy UVA system

  • 10+ Decade Dynamic Range of Optical Analysis.
  • Pico-ammeter: 10fA to 1mA (calibrated from 100fA - 1mA)
  • Wireless Communication, Built-in.
  • User controlled or Auto: Range, Zero/Dark, Sample Rate.
  • 4-20 mA Output.
  • 15 pin D Sub and SMA sensor/input ports.
  • “Set it & Forget It” Remote Data Logging.
  • Power: USB or Built-in Re-Chargeable Battery Pack.
  • Multi-System Simultaneous Continuous Monitoring.
  • Includes DataLight II Software and Labview Sample Code.
  • NIST-Traceable/ISO/IEC 17025:2017 Accredited Calibration.
  • Sample Rate Up to 100 Hz, Programmable.
  • Custom & OEM Inquiries Welcome



< Back to Optical Radiation Hazard Measurement Table

< Back to Phototherapy Light Measurement Table

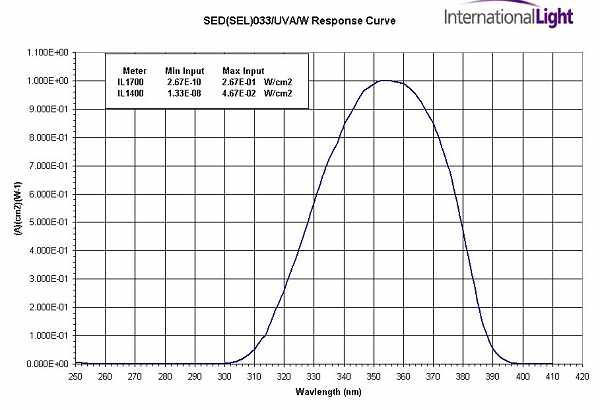

Response Curve





SED033/UVA/WD Phototherapy UVA Sensor with quartz diffuser

Dynamic range: 2e-10 to 1e-1 W/cm2
Measurement range: 315-390 nm.
Dimensions: 31 x 42 mm dia.
ORDERING PART#: Includes ILT5000*, SED033/UVA/W
* Software Included / Tablet PC Sold Separately



SED033 Detector

















Filters and input optics are removable and may be ordered separately from detector assembly to allow filter and input optic swapping



Note:For simultaneous multi-sensor data logging, ILT also offers theILT6000 Rack-Mount Radiometer System with the same specifications as the ILT5000 in a 2-10 unit, rack mountable housing.























For the latest meter specifications, data sheet, installation guide, tech notes and software, visit the ILT5000 page here.
