ILT2400-FARUVC 222nm Light Meter

ILT2400-FARUVC 222 Light Meter

ILT2400-FARUVC 222nm Light Meter

Part Number: ILT2400-FARUVC US
$3,219.00

Configured Light Measurement System Specifically for 222 Light Sources



Key Features


  • NIST Traceable, ISO17025 accredited 222 nm calibration with certificate
  • Readout: Irradiance in W/cm2, Dose in J/cm2
  • Power: USB or built-in re-chargeable battery
  • Software: DataLight III and Full API
  • User controlled or Auto: Range, Zero/Dark, Sample Rate
  • Made in the USA



< Back to UVC Disinfection Table

The ILT2400-FARUVC is a complete 222 nm, far UVC light measurement system.   System includes an ILT2400 handheld light meter with full color touch screen display, user friendly apps, and on board data storage.  Also includes SED240 solar blind sensor, 222 nm FUVC filter, wide eye diffuser, calibration certificate, USB cables, and a rugged storage case.





Measurement Range:   Typical 3.12e-7 to 3.12 e-3 W/cm2

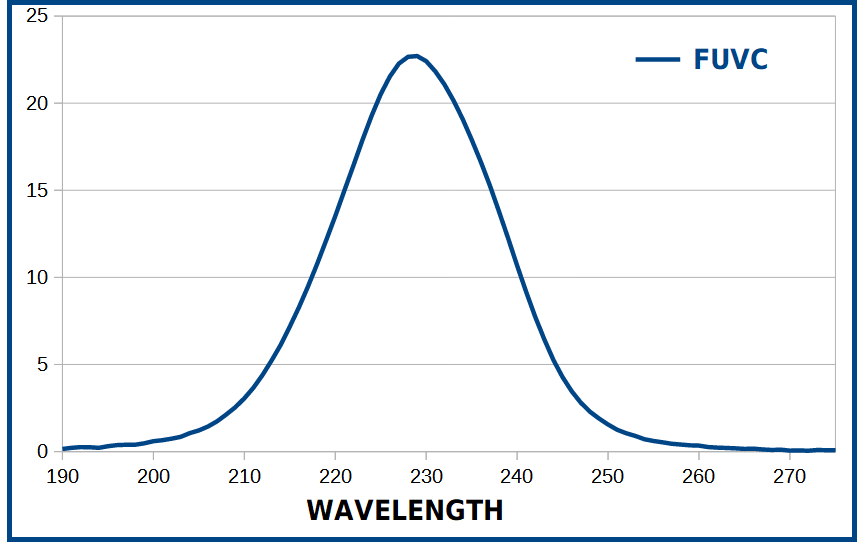

Spectral Range:  200 –  250 nm, calibration wavelength at 222  nm
SED240/FUVC/W Dimensions: 68 mm x 42 mm diameter

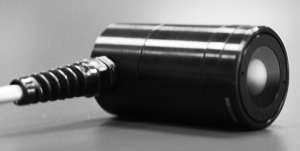

SED240 detector

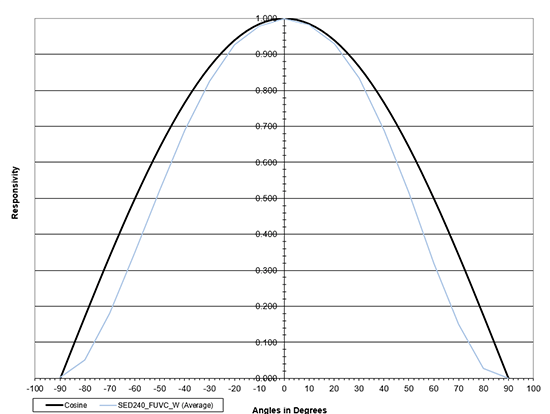

cosine response curve



Filters and input optics are removable and may be ordered separately from the detector assembly to allow filter and input optic swapping and calibration for other wavelengths of measurement.


For the latest meter specifications, data sheet, installation guide, tech notes and software, visit the ILT2400 page here
