ILT1000 Smart Sensor for Radiance Measurements
ILT1000/F/R
Part Number: ILT1000/F/R
Smart Sensor for Radiance Measurements
- Wired & Wireless Versions Available
- Ideal for Performing Multi-Point, Wireless, Remote Light Monitoring & Data Logging
- “Set It & Forget It” Remote Data Logging with On-Board Data Storage
- Multi-System Continuous Monitoring (up to 32 systems with one hub)
- 4 Open Licensed, Customer-Configurable Software Options
- 6 Decade Dynamic Range of Optical Analysis
- Autorange, Autodark with Manual Control Options
- 4-20 mA Output
- Auto-Sample Rate Configuration to Reduce Noise
- NIST-Traceable Calibration and Certificate
- Many Pre-Configured Application-Specific Detector/Filter/Optics Combinations Available
- Custom and OEM Version Inquiries Welcome
- Made in USA
- Size: 76.2 x 76.2 x 25.4 mm (3" x 3" x 1")
- Weight: 173 g (less than 0.5 lbs)
- Custom & OEM Inquiries Welcome
< Back to Audience Scanning & Laser Safety Table
Rugged, Compact, Multi-purpose, Multi-point, Smart Sensor for Radiance Measurements

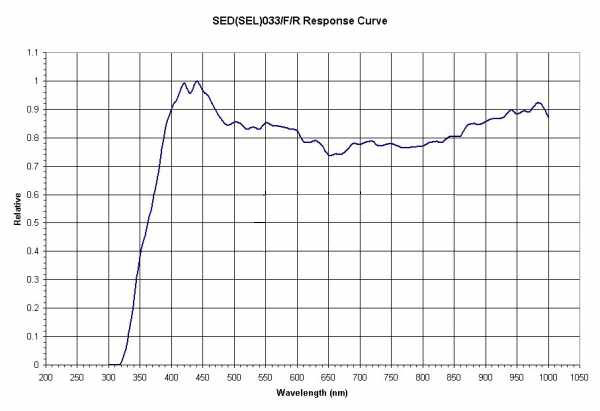

SED033/F/R Narrow field radiance probe.
Field of View: 1.5 deg. (+/- 0.75)
Dynamic Range: 6e-8 to 1e+0 W/cm²/sr
Measurement Range: 400-1064 nm
Spectral Range: 400-1000 nm
Ordering part#(s): ILT1000, F, radiance barrel and PRR calibration
Filters and input optics are removable and may be ordered separately from the detector assembly to allow filter and input optic swapping.
For the latest meter specifications, data sheet, installation guide, tech notes and software, visit the ILT1000 page here
