ILT2400 Hand-Held Radiometer for Germicidal and UV Hazard Measurements at 254 nm

ILT2400 Hand-Held Light Meter


Part Number: ILT2400,SED240/NS254/TD

Hand-Held Narrow-Band Germicidal Light (UV Disinfection) Measurement System.  Also For Measuring Optical Radiation Hazard

  • Research Quality at a Hand-held Price
  • 8 Decade Dynamic Range of Optical Analysis
  • Meter & Sensors with NIST Traceable ISO17025 Accredited Calibration
  • Compact, Ergonomic Design
  • Brilliant 4.3” Touch Screen Display
  • 90° Screen Rotation for Landscape and Portrait Viewing
  • ILT’s Accuspan: Auto-ranging with Smart Averaging
  • Built-in Rechargeable Battery Lasts Up to 8 Hours
  • Backwards Compatible with ILT1700 Sensors
  • Measurement Speeds Up to 100 µSeconds
  • Made in USA
  • Custom & OEM Inquiries Welcome


< Back to Germicidal Light Measurement Table

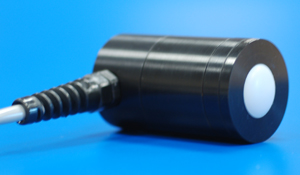

Narrowband Germicidal Detector

Configured specifically to measure germicidal effectiveness at 254 nm.

Measurement Range: 2e-6 to 2e-2 Watts/cm

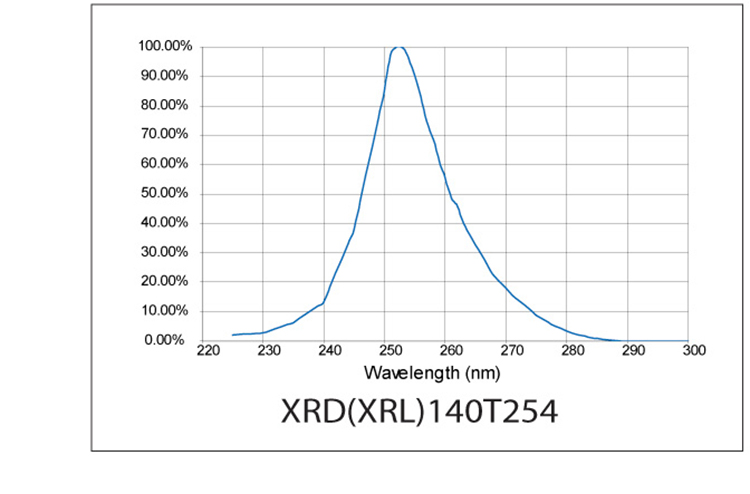

Hazard Spectral Range: 249 - 259 nm, Center wavelength at 254 nm.
Dimensions: 66 mm x 42 mm diameter
Order part number: ILT2400 (meter), SED240/NS254/TD (detector)

Applications: This detector has a narrow bandwidth with a center wavelength at 254 nm facilitating the measurement of germicidal effectiveness at 254 nm from medium-pressure mercury lamps, xenon arc lamps, mercury arc, or mercury-xenon arc lamps. These sources produce a broad spectral UV output with more intense mercury lines than the output at 254 nm which will cause artificially high readings from detectors with a broader response. This detector can be configured with optional attenuator filters at the time of purchase for measuring higher intensity germicidal UV sources. Please consult one of our knowledgeable sales representatives for more information.










For the latest meter specifications, data sheet, installation guide, tech notes and software, visit the ILT2400 page here.
