ILT2400 Hand-Held LED Radiant Intensity Measurement System

ILT2400  LED radiant intensity measurement system

ILT2400, SED033/F/INS125

Part Number: ILT2400, SED033/F/INS125

LED Radiant Intensity Measurement System

  • Research Quality at a Hand-held Price
  • 8 Decade Dynamic Range of Optical Analysis
  • Made in USA
  • Meter & Sensors with NIST Traceable ISO/IEC 17025:2017 Accredited Calibration
  • Hand-held, Compact, Ergonomic Design
  • Brilliant 4.3” Touch Screen Display
  • 90° Screen Rotation for Landscape and Portrait Viewing
  • ILT’s Accuspan: Auto-ranging with Smart Averaging
  • Built-in Rechargeable Battery Lasts Up to 8 Hours
  • Backwards Compatible with ILT1700 Sensors
  • Measurement Speeds Up to 100 µSeconds
  • Custom & OEM Inquiries Welcome



< Back to LED Testing & Measurement Table

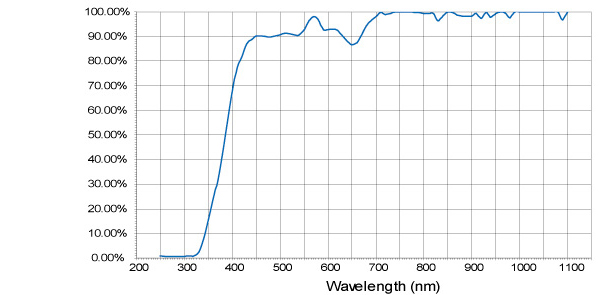

Response Curve

Radiant Power/Radiant Spherical Intensity Detector:  Includes 10-Inch integrating sphere for measuring radiant power or radiant spherical intensity.


Measurement Range: 3e-7 to 3 Watts
Spectral Range: 400 - 1064 nm
Order part number: ILT2400 (meter), SED033/F/INS125 (detector)


Applications:  This detector is equipped with our F flat spectral response filter and is typically used for measuring higher power LEDs, LED modules and small lamps for total flux output in Watts. This detector can also be calibrated to measure radiant spherical intensity in Watts/steradian.





























Filters and input optics are removable and may be ordered separately from the detector assembly to allow filter and input optic swapping.
