ILT1005 Multi-point Smart Sensor for UVA Violet & Violet-Blue Light Measurement

Measure Violet-Blue Narrow Band, High Power LEDs for Air and Water Sterilization

ILT1005/NS405/W, ILT2400/SED005/NS405/W

Part Number: ILT1005/NS405/W,ILT2400/SED005/NS405/W US

ILT1005 UVA Violet & Violet-Blue Light Meter, Monitor & Datalogger

For Air and Water Sterilization

  • Ideal for Performing Multi-Point, Wireless, Remote Light Monitoring & Data Logging
  • “Set It & Forget It” Remote Data Logging with On-Board Data Storage
  • Multi-System Continuous Monitoring (up to 32 systems with one hub)
  • 4 Open Licensed, Customer-Configurable Software Options
  • 8 Decade Dynamic Range of Optical Analysis
  • Autorange, Autodark with Manual Control Options
  • Auto-Sample Rate Configuration to Reduce Noise
  • NIST-Traceable Calibration and Certificate
  • Made in USA
  • Custom & OEM Inquiries Welcome!


< Back to Germicidal Light Measurement Table

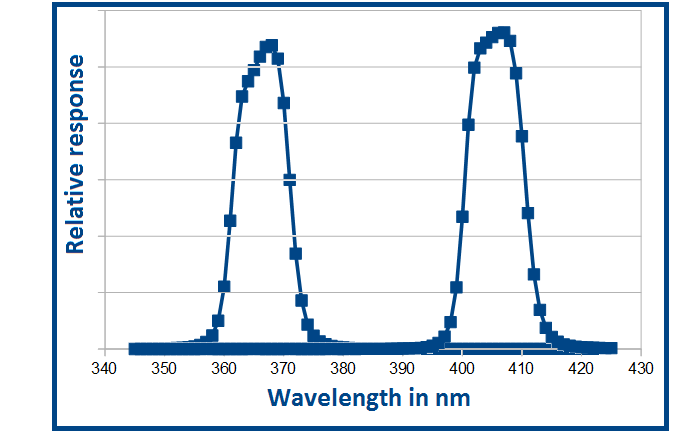

ILT1005 NS365W NS405W Response Curve

Scientific evidence is now available proving 365 nm UVA-Violet, and 405 nm Blue-VIS light in high doses can cause the destruction or inactivation of a wide range of microbial species and bacteria, such as Escherichia coli DH5 alpha, Enteropathogenic E. coli, Vibrio parahaemolyticus, Staphylococcus aureus, and Salmonella enterica serovar Enteritidis and some resistant forms such as bacterial and fungal spores.

High-intensity narrow-spectrum light environmental disinfection system (HINS-light EDS) require monitoring to assure a proper dosage is received and a high light intensity is maintained throughout the disinfection period. ILT light meters and UV led's can be combined to offer a light source and measuremen solution.

ILT1005/NS365/W for UVA Violet and ILT1005/NS405/W for Violet-BlueMeasurement Range: 2.0e-6 to 1.0e+0 W/cm2
Spectral Range: 10 nm FWHM with a peak at 365 or 405 nm
Order part numbers: ILT1005/NS365/W or ILT1005/NS405/W





Note: Also available with our portable, hand-held ILT2400 Light Meter with Built-in touch screen display. Sensors include a 7 foot cable.

Order part numbers: ILT2400 SED005/NS365/W or ILT2400 SED005/NS405/W


ILT2400 Meter










For the latest meter specifications, data sheet, installation guide, tech notes and software, visit the ILT1000 page here.

For the latest meter specifications, data sheet, installation guide, tech notes and software, visit the ILT2400 page here.
